DH1325R 2 Heads CNC Router ,DH1325R 2 Heads CNC Router manufacturer- WINWIN CNC Router
DH1325R 2 Heads CNC Router ,DH1325R 2 Heads CNC Router manufacturer- WINWIN CNC Router
CE certification
CE certification
CE certification
1.)Frame: Welded Structure, very strong and stable
2.)The international leading DSP control system
3.)The spindle can be automatically replaced, for different processing.
Top Quality Components1) The machine’s body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.
3) Well-known brands of HQD(CS) Air-cooled brush less spindle, strong cutting ability, low noise, to ensure the machine working for long time.
4) High-performance driven motor to ensure the machine’s high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine’s failure rate.
6) Break point specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

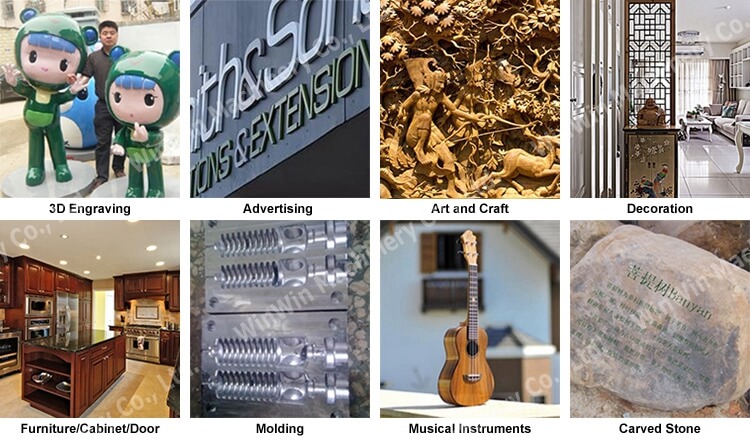

Applications3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Mill work, Cabinetry, Exhibits and Fixtures, Sign making, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

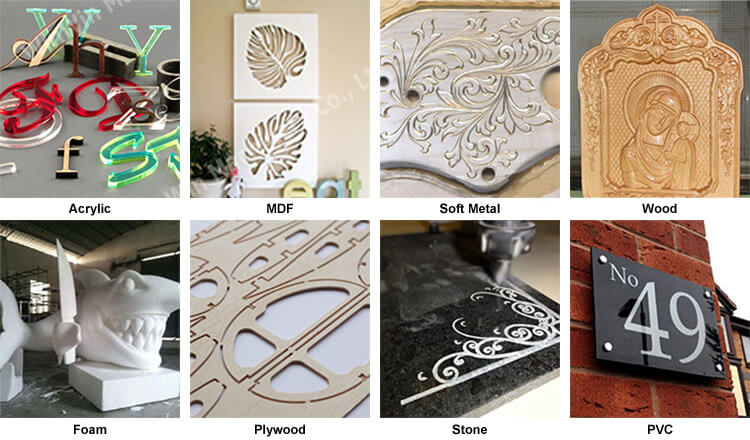

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.
|
NO. |
Description |
Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1360×3640mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | T-slot (Option: Vacuum and T-slot Combined ) |
| 6 | Frame | Welded Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 3.2Kw |
| 10 | Max. Rapid Travel Rate | 33000mm/min |
| 11 | Max. Working Speed | 25000mm/min |
| 12 | Spindle Power | 3.0/4.5/6KW*2pcs |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Drive Motors |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP System (Options: Ncstudio/Mach3 PC Software) |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 128M(U Disk) |
| 20 | Collet | ER25 |
| 21 | X,Y Resolution | <0.01mm |
| 22 | Software Compatibility | Type3/UcancameV9 Software (Option: Artcam software) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3500X2000X2150mm |
| 26 | N.W. | 1300KG |
| 27 | G.W. | 1450KG |
| 28 | Optional Parts | Air Cooling Spindle or Water Cooling Spindle |
| Syntec Control System | ||
| Dust Collector/ Dust Hoods for three Axis | ||
| Vacuum Pump | ||
| Rotary System | ||
| Mist-cooling System | ||
| 850W Yaskawa/800W Panasonic Servo Motors |
1. Spindle
1.1 Manual Change Spindle
Italian HSD Air Cooling Spindle
Domestic Air Cooling Spindle
Domestic Water Cooling Spindle
Italian Colombo Air Cooling Spindle
1.2. ATC Spindle
Chinese CS ATC Air Cooling Spindle
Italian HSD ATC Air Cooling Spindle
Chinese ATC Water Cooling Spindle
Italian HSD 5axis ATC Water Cooling Spindle
Italian HSD ATC Water Cooling Spindle
Italian Hiteco ATC Air Cooling Spindle
2. Motor
Fuxing Stepper Motor
Taiwan Delta Servo Motor
Japanese Panasonic Servo Motor
Japanese Yaskawa Servo Motor
Japanese Fanuc Servo Motor
France Siemens Servo Motor
Taiwan Apex Reducer
Japanese Shimpo Reducer
3. Control System
Rich Auto DSP Controller
Ncstudio DSP Controller
Ncstudio Software Controller
Mach3 Software Controller
France Siemens Controller
Taiwan Syntec Controller
Japanese Fanuc Controller
Italian Osai Controller
4. Inverter
Fuling Inverter
Taiwan Delta Inverter
Japanese Omron Inverter
France Schneider Contactor
France Schneider Main Switch
Japanese Omron 24V Power Supply
Japanese Omron Limit Sensor
Japanese Omron Power Switch
Taiwan HIWIN Square Rails
Taiwan TBI Ball Screw
High Precision Helical Rack Gear 1.25mol
LanPu Transformer
High Quality Auto Lubrication System
Good Quality High-rise Flexible Wire
Hard Rubber Limited
Protect Fuses
Vacuum & T-slot Combined Table
High-quality Belt
Options
Rotary-Removable Type
Rotary-At the End of Machine
Rotary-On the Side of Machine
Germany SCHMLAZ Vacuum Beam
Stainless Steel Water Slot
Linear Tool Magazine
Carrousel Tool Magazine
Tool Sensor System
Water Chiller
Air Compressor
Germany Becker Vacuum Pump
Chinese Water Cooling Pump
TY Air Cooling Pump
Snail Air Cooling Vacuum Pump
Italian HSD Boring Unit
Mist Cooling System
Dust Collector
Hand Wheel
Material Alignment System
1. The machine is guaranteed for 12 months.
2. Technical support by phone, e-mail or MSN around the clock.
3. Friendly English version manual and operation video CD disk.
