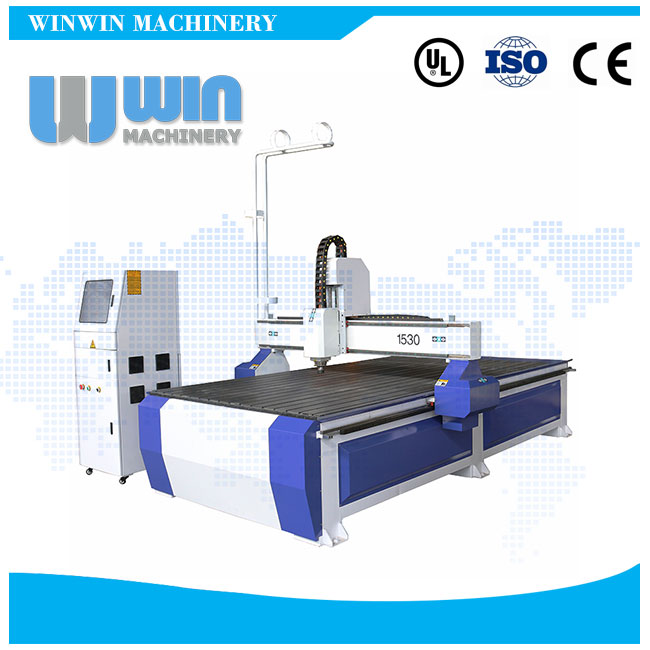

WW1530M Stone Carving Machine

Inquriy

0.0

分

Specifications

Stone Carving Machine is suitable for Curb & Paving Stone Forming industries, Stone processing factories, Tombstone processing industries, Advertisement industries for Stone art craft works, Home & Outdoor Product making industries, Architectural decoration industries and so on.

1.Profiled steel welded lathe bed stabilizing treated under high temperature to ensure excellent rigidity and vigorous strength within minimum distortion,.

2.Precise traveling of Y axis driven by double motor ensures stable performance of machine.

3.High precision rack and pinion transmission ensures high accuracy, fast speed and strong power.

4.Imported square linear guide rail ensures high accuracy, heavy work load and long service time.

5.Top-quality mechanical and electric all design with well-selected brand components minimize breakdown rate.

6.Configured with water tank and automatic cooling water supply system.

7.Overall dust-proof and water-proof design protects all moving.

Performance Parameter

Number	Description	Parameter
1	X,Y,Z Working Area	1500x3000x200mm
2	Table Size	1560×3460mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Frame	Welded Structure
6	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
7	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
8	Max. Engraving Speed	3000mm/min
9	Collect	3.175, 6, 12.7mm
10	Drive Motors	Stepper System
11	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
12	Command Language	G Code
13	Operating System	DSP System (options: Ncstudio/Mach3 PC Software)
14	Computer Interface	USB
15	Flash Memory	128M(U Disk)
16	X,Y Resolution	<0.03mm
17	Software Compatibility	Type3/UcancameV9 Software (Option: Artcam software)
18	Running Environment Temperature	0 - 45 Centigrade
19	Relative Humidity	30% - 75%
20	Packing Size	3500X1960X1870mm

Machine Schematic

1. Spindle

1.1 Manual Change Spindle


Italian HSD Air Cooling Spindle	Domestic Air Cooling Spindle	Domestic Water Cooling Spindle	Italian Colombo Air Cooling Spindle

1.2. ATC Spindle


Chinese CS ATC Air Cooling Spindle	Italian HSD ATC Air Cooling Spindle	Chinese ATC Water Cooling Spindle	Italian HSD 5axis ATC Water Cooling Spindle	Italian HSD ATC Water Cooling Spindle	Italian Hiteco ATC Air Cooling Spindle

2. Motor


Fuxing Stepper Motor	Taiwan Delta Servo Motor	Japanese Panasonic Servo Motor	Japanese Yaskawa Servo Motor

Japanese Fanuc Servo Motor	France Siemens Servo Motor	Taiwan Apex Reducer	Japanese Shimpo Reducer

3. Control System


Rich Auto DSP Controller	Ncstudio DSP Controller	Ncstudio Software Controller	Mach3 Software Controller

France Siemens Controller	Taiwan Syntec Controller	Japanese Fanuc Controller	Italian Osai Controller

4. Inverter


Fuling Inverter	Taiwan Delta Inverter	Japanese Omron Inverter

Basic Accessories


France Schneider Contactor	France Schneider Main Switch	Japanese Omron 24V Power Supply	Japanese Omron Limit Sensor	Japanese Omron Power Switch

Taiwan HIWIN Square Rails	Taiwan TBI Ball Screw	High Precision Helical Rack Gear 1.25mol	LanPu Transformer	High Quality Auto Lubrication System

Good Quality High-rise Flexible Wire	Hard Rubber Limited	Protect Fuses	Vacuum &T-slot Combined Table	High-quality Belt

Options


Rotary-Removable Type	Rotary-At the End of Machine	Rotary-On the Side of Machine	Germany SCHMLAZ Vacuum Beam	Stainless Steel Water Slot

Linear Tool Magazine	Carrousel Tool Magazine	Tool Sensor System	Water Chiller	Air Compressor

Germany Becker Vacuum Pump	Chinese Water Cooling Pump	TY Air Cooling Pump	Snail Air Cooling Vacuum Pump	Italian HSD Boring Unit

Mist Cooling System	Dust Collector	Hand Wheel	Material Alignment System
