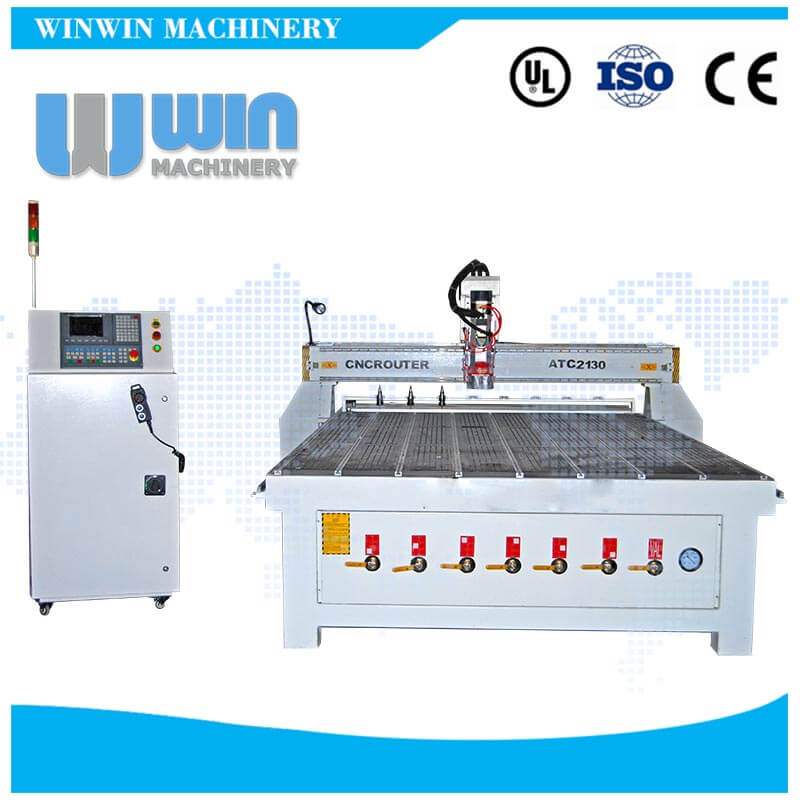

ATS Woodworking CNC Router

Inquriy Overview
1.)Frame: Welded Structure, very strong and stable
2.)The international leading DSP control system
3.)The spindle can be automatically replaced, for different processing.
4.)One spindle can be rotated 90 degree for lock slot.

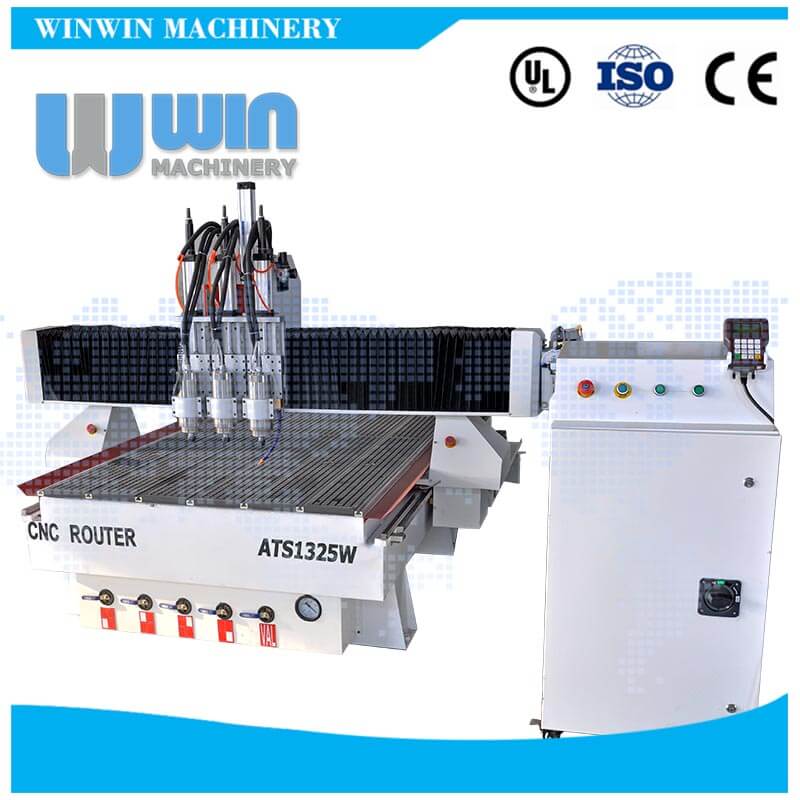

5.)Optional: ATS1325, ADS1325, DH1325 etc.

Advantages
1) The woodworking cnc router's body is strong, high-precision, reliable and durable.
2) Imported high-precision ball screw, which moving smoothly, to ensure the machine's high precision.
3) Well-known brands of HSD Air-cooled brush less spindle, strong cutting ability, low noise, to ensure the woodworking cnc router working for long time.
4) High-performance driven motor to ensure the machine's high speed and accuracy.
5) Perfect design, top quality accessories, to minimize the machine's failure rate.
6) Break point specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications
3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Mill work, Cabinetry, Exhibits and Fixtures, Sign making, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Materials Cut
Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenolic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Specification

NO.	Description	Parameter
01	X,Y,Z Working Area	1300x2500x200mm
02	Table Size	1360×3640mm
03	X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
04	X,Y,Z Re positioning Accuracy	±0.03mm
05	Table Surface	Vacuum and T-slot Combined (Option: T-slot table)
06	Frame	Welded structure
07	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
08	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
09	Max. Power Consumption	(Without Spindle) 3.2kw
10	Max. Rapid Travel Rate	33000mm/min
11	Max. Working Speed	25000mm/min
12	Spindle Power	3.0/4.5/6KW*3pcs
13	Spindle Speed	0-18000RPM
14	Drive Motors	Stepper System
15	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V)
16	Command Language	G Code
17	Operating System	DSP System (Options: Ncstudio/Mach3 PC Software)
18	Computer Interface	USB
19	Flash Memory	2G
20	Collet	ER25/ER32
21	X,Y Resolution	<0.01mm
22	Software Compatibility	Type3/UcancameV9 software (Option: Artcam software)
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3750x2250x2100mm
26	N.W.	1950KG
27	G.W.	2390KG
28	Optional Parts	Air Cooling Spindle or Water Cooling Spindle
		Syntec Control System
		Dust Collector/ Dust Hoods for three Axis
		Vacuum Pump
		Rotary System
		Mist-cooling System
		850W Yaskawa/800W Panasonic Servo Motors

Machine Schematic

1. Spindle

1.1 Manual Change Spindle

Italian HSD Air Cooling Spindle	Domestic Air Cooling Spindle	Domestic Water Cooling Spindle	Italian Colombo Air Cooling Spindle

1.2. ATC Spindle

Chinese CS ATC Air Cooling Spindle	Italian HSD ATC Air Cooling Spindle	Chinese ATC Water Cooling Spindle	Italian HSD 5axis ATC Water Cooling Spindle	Italian HSD ATC Water Cooling Spindle	Italian Hiteco ATC Air Cooling Spindle

2. Motor

Fuxing Stepper Motor	Taiwan Delta Servo Motor	Japanese Panasonic Servo Motor	Japanese Yaskawa Servo Motor
Japanese Fanuc Servo Motor	France Siemens Servo Motor	Taiwan Apex Reducer	Japanese Shimpo Reducer

3. Control System

Rich Auto DSP Controller	Ncstudio DSP Controller	Ncstudio Software Controller	Mach3 Software Controller
France Siemens Controller	Taiwan Syntec Controller	Japanese Fanuc Controller	Italian Osai Controller

4. Inverter

Fuling Inverter	Taiwan Delta Inverter	Japanese Omron Inverter

Basic Accessories

France Schneider Contactor	France Schneider Main Switch	Japanese Omron 24V Power Supply	Japanese Omron Limit Sensor	Japanese Omron Power Switch
Taiwan HIWIN Square Rails	Taiwan TBI Ball Screw	High Precision Helical Rack Gear 1.25mol	LanPu Transformer	High Quality Auto Lubrication System
Good Quality High-rise Flexible Wire	Hard Rubber Limited	Protect Fuses	Vacuum &T-slot Combined Table	High-quality Belt

Options

Rotary-Removable Type	Rotary-At the End of Machine	Rotary-On the Side of Machine	Germany SCHMLAZ Vacuum Beam	Stainless Steel Water Slot
Linear Tool Magazine	Carrousel Tool Magazine	Tool Sensor System	Water Chiller	Air Compressor
Germany Becker Vacuum Pump	Chinese Water Cooling Pump	TY Air Cooling Pump	Snail Air Cooling Vacuum Pump	Italian HSD Boring Unit
Mist Cooling System	Dust Collector	Hand Wheel	Material Alignment System

Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.

2. Technical support by phone, e-mail or MSN around the clock.

3. Friendly English version manual and operation video CD disk.
