WW1325R Rotary 3D CNC Router

WW1325R Rotary 3D CNC Router
Inquriy
0.0

Overview

This Rotary 3D CNC Router is especially designed for engraving Rotary Grande with the panel length 1500mm T-slot table, and 1000 mm long rotary table. The machine works with 400mm Z (height) of job size, and 500 mm for the rotary, and rotary diameter can be 1000 mm, 1000 mm long cylinder.

We use stepper motor 3.0kW HQD spindle, Delta inverter and dust collector machine that is qualified for a job and the size of the timber, and large mass production.

With hard steel structure, the machine is suitable for the job of hardwood, such as cutting and engraving rosewood for furniture, interior decoration, and qualified for the mass production of furniture in the shape retention vacuum and dust collector.

Advantages

1) The machine’s body is strong, high-precision, reliable and durable.

2) Imported high-precision ball screw, which moving smoothly, to ensure the machine’s high precision.

3). Well-known brands of HSD Air-cooled brushless spindle, strong cutting ability, low noise, to ensure the machine working for long time.

4) High-performance driven motor to ensure the machine’s high speed and accuracy.

5) Perfect design, top quality accessories, to minimize the machine’s failure rate.

6) Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.

Applications

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

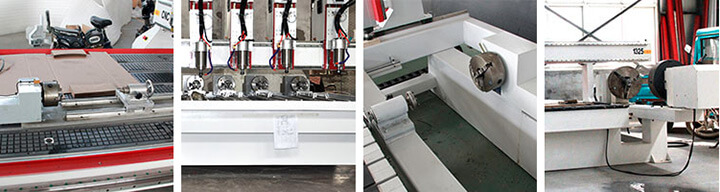

Rotary Option

Materials

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Features

NO.

Description

Parameter

1 X,Y,Z Working Area 1300x1500x400mm&1000*1000*500mm
2 Table Size 1360×2940mm
3 X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
4 X,Y,Z Repositioning Accuracy ±0.03mm
5 Table Surface T-slot (Option: Vacuum and T-slot Combined )
6 Frame Welded Structure
7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings
8 Z Structure Hiwin Rail Linear Bearings and Ball Screw
9 Max. Power Consumption (Without Spindle) 4.5Kw
10 Max. Rapid Travel Rate 33000mm/min
11 Max. Working Speed 25000mm/min
12 Spindle Power 3.0/4.5/6/7KW
13 Spindle Speed 0-24000RPM
14 Drive Motors Drive Motors
15 Working Voltage AC380V/50/60Hz,3PH (Option: 220V)
16 Command Language G Code
17 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)
18 Computer Interface USB
19 Flash Memory 128M(U Disk)
20 Collet ER25
21 X,Y Resolution <0.01mm
22 Software Compatibility Type3/UcancameV9 Software (Option: Artcam software)
23 Running Environment Temperature 0 - 45 Centigrade
24 Relative Humidity 30% - 75%
25 Packing Size 3350X2100X2150mm
26 N.W. 1300KG
27 G.W. 1450KG
28 Optional Parts Air Cooling Spindle or Water Cooling Spindle
Syntec Control System
Dust Collector/ Dust Hoods for three Axis
Vacuum Pump
Rotary System
Mist-cooling System
850W Yaskawa/800W Panasonic Servo Motors

Machine Schematic

1. Spindle

1.1 Manual Change Spindle

  • MADE IN CHINA 5 AXIS CNC ROUTER

    Italian HSD Air Cooling Spindle

  • GOOD

    Domestic Air Cooling Spindle

  • CHEAP 5 AXIS CNC ROUTER

    Domestic Water Cooling Spindle

  • WATER COOLING SPINDLE 5 AXIS CNC ROUTER

    Italian Colombo Air Cooling Spindle

1.2. ATC Spindle

  • 5 AXIS CNC ROUTER

    Chinese CS ATC Air Cooling Spindle

  • European Quality 5 AXIS CNC ROUTER

    Italian HSD ATC Air Cooling Spindle

  •  5 AXIS CNC ROUTER FOR FOAM, ACRYLIC, SOFT WOOD, MDF, PLYWOOD

    Chinese ATC Water Cooling Spindle

  •  5 AXIS CNC ROUTER FOR WOODWORKING

    Italian HSD 5axis ATC Water Cooling Spindle

  •  5 AXIS CNC ROUTER FOR ADVERTISING

    Italian HSD ATC Water Cooling Spindle

  •  5 AXIS CNC ROUTER FOR CABINET

    Italian Hiteco ATC Air Cooling Spindle

2. Motor

  •  5 AXIS CNC ROUTER FOR FURNITURE

    Fuxing Stepper Motor

  •  5 AXIS CNC ROUTER FOR GUITAR MAKING

    Taiwan Delta Servo Motor

  •  5 AXIS CNC ROUTER FOR PROCESSSING THE DOOR

    Japanese Panasonic Servo Motor

  •  5 AXIS CNC ROUTER FOR CUTTING WOOD

    Japanese Yaskawa Servo Motor

  • HIGH QUALITY 5 AXIS CNC ROUTER

    Japanese Fanuc Servo Motor

  •  5 AXIS CNC ROUTER FOR ENGRAVING WOOD

    France Siemens Servo Motor

  •  5 AXIS CNC ROUTER FOR DOOR AND WINDOWS

    Taiwan Apex Reducer

  •  5 AXIS CNC ROUTER FOR CARVING WOOD

    Japanese Shimpo Reducer

3. Control System

  •  5 AXIS CNC ROUTER FOR 3D CARVING

    Rich Auto DSP Controller

  •  5 AXIS CNC ROUTER FOR 3D ENGRAVING

    Ncstudio DSP Controller

  •  5 AXIS CNC ROUTER FOR ART AND CRAFT

    Ncstudio Software Controller

  •  5 AXIS CNC ROUTER FOR STONE CARVING

    Mach3 Software Controller

  •  5 AXIS CNC ROUTER FOR STONE ENGRAVING

    France Siemens Controller

  •  5 AXIS CNC ROUTER FOR MARBLE ENGRAVING

    Taiwan Syntec Controller

  •  5 AXIS CNC ROUTER FOR GRANITE ENGRAVING

    Japanese Fanuc Controller

  •  5 AXIS CNC ROUTER FOR WOOD

    Italian Osai Controller

4. Inverter

  •  5 AXIS CNC ROUTER FOR PLYWOOD

    Fuling Inverter

  •  5 AXIS CNC ROUTER FOR MDF

    Taiwan Delta Inverter

  •  5 AXIS CNC ROUTER FOR PVC

    Japanese Omron Inverter

Basic Accessories
  •  5 AXIS CNC ROUTER’S SCHNEIDER CONTACTOR

    France Schneider Contactor

  •  5 AXIS CNC ROUTER’S SCHNEIDER MAIN SWITCH

    France Schneider Main Switch

  •  5 AXIS CNC ROUTER’S OMRON 24V POWER SUPPLY

    Japanese Omron 24V Power Supply

  •  5 AXIS CNC ROUTER’S OMRON LIMIT SENSOR

    Japanese Omron Limit Sensor

  •  5 AXIS CNC ROUTER’S OMRON POWER SWITCH

    Japanese Omron Power Switch

  •  5 AXIS CNC ROUTER’S HIWIN SQUARE RAILS

    Taiwan HIWIN Square Rails

  •  5 AXIS CNC ROUTER’S TAIWAN TBI BALL SCREW

    Taiwan TBI Ball Screw

  •  5 AXIS CNC ROUTER’S 1.25MOL HIGH PRECISION HELICAL RACK GEAR

    High Precision Helical Rack Gear 1.25mol

  •  5 AXIS CNC ROUTER’S LANPU TRANSFORMER

    LanPu Transformer

  •  5 AXIS CNC ROUTER’S AUTOMATIC LUBRICATION SYSTEM

    High Quality Auto Lubrication System

  • 5 AXIS CNC ROUTER’S HIGH-RISE FLEXIBLE WIRE

    Good Quality High-rise Flexible Wire

  • 5 AXIS CNC ROUTER’S HARD RUBBER LIMITED

    Hard Rubber Limited

  • 5 AXIS CNC ROUTER’S PROTECT FUSES

    Protect Fuses

  • 5 AXIS CNC ROUTER’S VACUUM TABLE

    Vacuum & T-slot Combined Table

  • 5 AXIS CNC ROUTER’S HIGH QUALITY BELT

    High-quality Belt

Options

  • 5 AXIS CNC ROUTER’S ROTARY-RAMOVABLE TYPE

    Rotary-Removable Type

  • 5 AXIS CNC ROUTER’S ROTARY-AT THE END OF MACHINE

    Rotary-At the End of Machine

  • 5 AXIS CNC ROUTER’S ROTARY-ON THE SIDE OF MACHINE

    Rotary-On the Side of Machine

  • Germany SCHMLAZ Vacuum Beam

  • Stainless Steel Water Slot

  • Linear Tool Magazine

  • Carrousel Tool Magazine

  • Tool Sensor System

  • Water Chiller

  • Air Compressor

  • Germany Becker Vacuum Pump

  • Chinese Water Cooling Pump

  • TY Air Cooling Pump

  • Snail Air Cooling Vacuum Pump

  • Italian HSD Boring Unit

  • Mist Cooling System

  • Dust Collector

  • Hand Wheel

  • Material Alignment System

Guarantee & After Sales Service

1. The machine is guaranteed for 12 months.

2. Technical support by phone, e-mail or MSN around the clock.

3. Friendly English version manual and operation video CD disk.
